輸送機
類 別: 輸送機
描 述: ? SZG系列振動輸送機 ? SZG系列振動輸送機是一種重要的慣性振動輸送機,該機結構簡單,形式與規格多樣,可滿足不同使用環境要求,廣泛用于各行業對各種小塊狀,顆粒狀及粉狀物料的中短距離輸送。 ? SZG系列振動輸送機一般是由振源——振動電機或激振器,承載體,減震支撐,承載基礎及相關

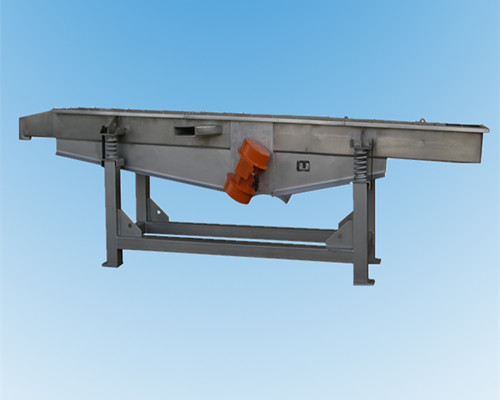

? SZG系列振動輸送機
? SZG系列振動輸送機是一種重要的慣性振動輸送機,該機結構簡單,形式與規格多樣,可滿足不同使用環境要求,廣泛用于各行業對各種小塊狀,顆粒狀及粉狀物料的中短距離輸送。
? SZG系列振動輸送機一般是由振源——振動電機或激振器,承載體,減震支撐,承載基礎及相關配套附件等組成。根據現場使用環境及輸送物料特性要求,輸送機承載體可采用不同材料分別加工成U形槽和管狀等結構形式,并可按有無密封要求制作成敞開型或封閉型,以滿足不同工藝流程,由于設備承載體是金屬制件,且潤滑點遠離物料,因此該機不僅可以輸送各種常溫,普通物料,而且可以輸送多種高溫,有毒等非常規物料;若對承載體施行特殊加工,則在輸送過程中可實現物料的篩選,干燥,加溫,冷卻等工藝要求。
? SZG系列振動輸送機可設計為座式或吊掛式安裝,亦可配置調控閥門,作業平臺等接口設施。
? SZG Vibrating Conveyor SZG series vibrating conveyor/feeder is an important inertia vibrating conveyor. Its simple structure and various forms and specifications can meet the requirements from different application backgrounds in various industry, it is widely applied to short and intermediate transportation of small block, ?granular, and power material. SZG series vibration conveyor consists of vibration source- vibration motor or vibration excitor, supporting body ,vibration damper, load-supporting base and other accessories.According to the working environment and specific requirement of the material,the supporting body of the conveyor can be shaped as U groove and tubular.It can also be made in opening type and sealing type to satisfy different technological process. Because the supporting body of the conveyor is made of metal and its lubricating points is far from materials .it can not only transport the common materiel in normal temperature ,but also convey the poison-contained materiel in high temperature . If making additional work on the supporting body, other technological requirements can be realized during transportation, such as filtration, dryness, warming-up and cooling of the material.
型號 Model ? |
輸送能力 Conveying Capacity (t/h) |
輸送距離Conveying Distance (m) |
輸送顆粒 Max Material size (mm) |
雙振幅Double ampl. (mm) |
頻率Speed (r/min) |
功率Power (kw) |
電流Current (A) |
基礎垂直動載荷Basic vertical dynamic load (N) |
重量 Weight (kg) |
|
SZG-3 |
ⅰ |
11 |
3 |
30 |
4~6 |
1450 |
0.75×2 |
1.84×2 |
1570 |
308 |
ⅱ |
17 |
60 |
2140 |
420 |
||||||
ⅲ |
25 |
100 |
2300 |
450 |
||||||
SZG-4 |
ⅰ |
11 |
4 |
30 |
4~6 |
1450 |
0.75×2 |
1.84×2 |
2650 |
520 |
ⅱ |
17 |
60 |
2960 |
580 |
||||||
ⅲ |
25 |
100 |
3160 |
620 |
||||||
SZG-5 |
ⅰ |
9 |
5 |
30 |
4~6 |
1450 |
1.5×2 |
3.84×2 |
3320 |
650 |
ⅱ |
15 |
60 |
3520 |
690 |
||||||
ⅲ |
23 |
100 |
3670 |
720 |
||||||
SZG-6 |
ⅰ |
9 |
6 |
30 |
5~7 |
960 |
2×2 |
4.1×2 |
4030 |
790 |
ⅱ |
13 |
60 |
4090 |
860 |
||||||
ⅲ |
23 |
100 |
5610 |
1100 |
||||||
SZG-7 |
ⅰ |
9 |
7 |
30 |
5~7 |
960 |
2×2 |
4.1×2 |
6120 |
1200 |
ⅱ |
13 |
60 |
6890 |
1350 |
||||||
ⅲ |
20 |
100 |
7190 |
1410 |
||||||
SZG-8 |
ⅰ |
7 |
8 |
30 |
5~7 |
960 |
2.5×2 |
5.75×2 |
8160 |
1600 |
ⅱ |
12 |
60 |
8780 |
1720 |
||||||
ⅲ |
18 |
100 |
9340 |
1850 |
||||||
SZG-9 |
ⅰ |
5 |
9 |
30 |
6~8 |
960 |
3.7×2 |
7.4×2 |
10710 |
2100 |
ⅱ |
10 |
60 |
11480 |
2250 |
||||||
ⅲ |
15 |
100 |
12250 |
2400 |
||||||
SZG-10 |
ⅰ |
5 |
10 |
30 |
6~8 |
960 |
3.7×2 |
7.4×2 |
12760 |
2500 |
ⅱ |
10 |
60 |
13520 |
2650 |
||||||
ⅲ |
15 |
100 |
14290 |
2800 |
||||||
SZG-12 |
ⅰ |
4 |
12 |
30 |
6~8 |
960 |
3.7×2 |
7.4×2 |
13830 |
2710 |
ⅱ |
8 |
60 |
14800 |
2900 |
||||||
ⅲ |
12 |
100 |
15870 |
3110 |
